NiSi Macro Photography Focusing Rail NM-180S

NiSi Macro Photography Focusing Rail NM-180S

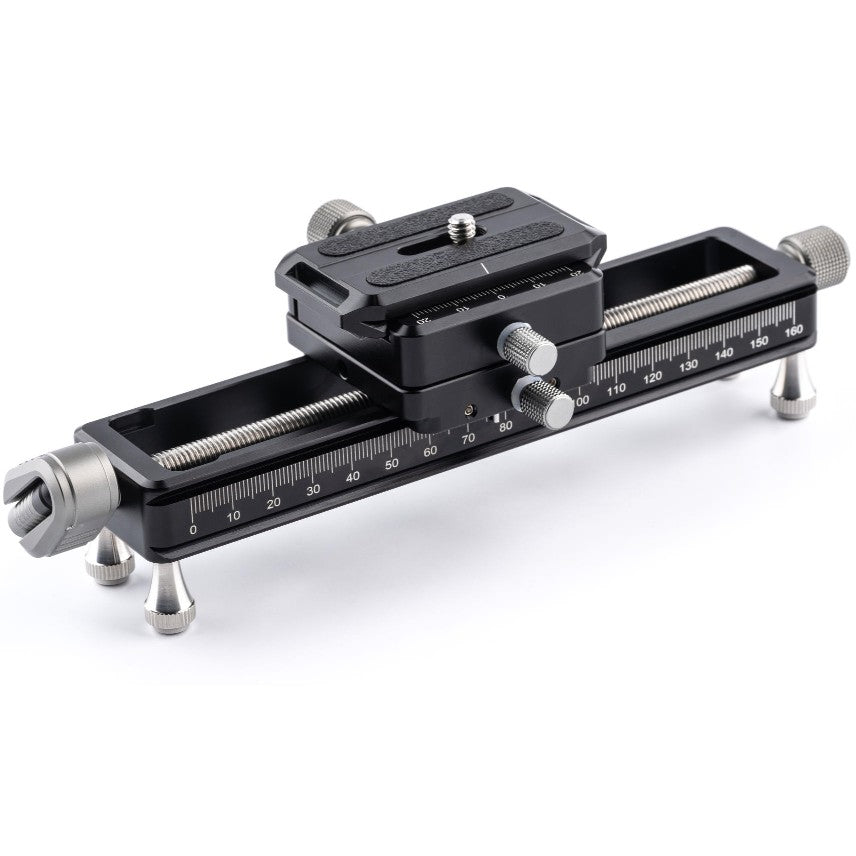

The NiSi Macro Photography Focusing Rail NM-18S is ideal with a 360 degree rotatable clamp, as this gives you the ability to accurately adjust the position of your camera when shooting macro. The rail features an integrated Arca-Type compatible quick-release clamp and also includes an Arca-type plate. The hedge rail itself has a double dovetail mounting and therefore fits most Arca-type clamps. The mounting clamp allows the 360-degree rotation to easily change the camera direction without having to remove the plate from the clamp.

The adjustment range is 160 mm, while the clamp size is 180 mm, maximizing the movement of the camera. The collapsible thumbscrew knob makes it easy to adjust the movement and to store. A longer quick release plate is designed for telephoto lenses. Besides the fact that the NiSi Macro Photography Focusing Rail NM-180S fits on almost all Arca-type clamps/ball heads, it also contains four detachable foot nails that allow the rail to be used directly on the table-top. The platform displacement per revolution is 1.25 mm with engraved index marks on both sides of the rail for fine adjustments. At the bottom of the rail is a 3/8'' and 1/4'' screw hole that allows all tripod heads to be used. The maximum load is 5 kg.

The NiSi Macro Focusing Rail NM-180 with 360 degree rotatable clamp is made of high quality CNC machined aluminium, and is hard anodized with a corrosion resistant finish.These properties make it wear-resistant and scratch-resistant.

Contents

• NiSi Macro Photography Focusing Rail NM-180S
