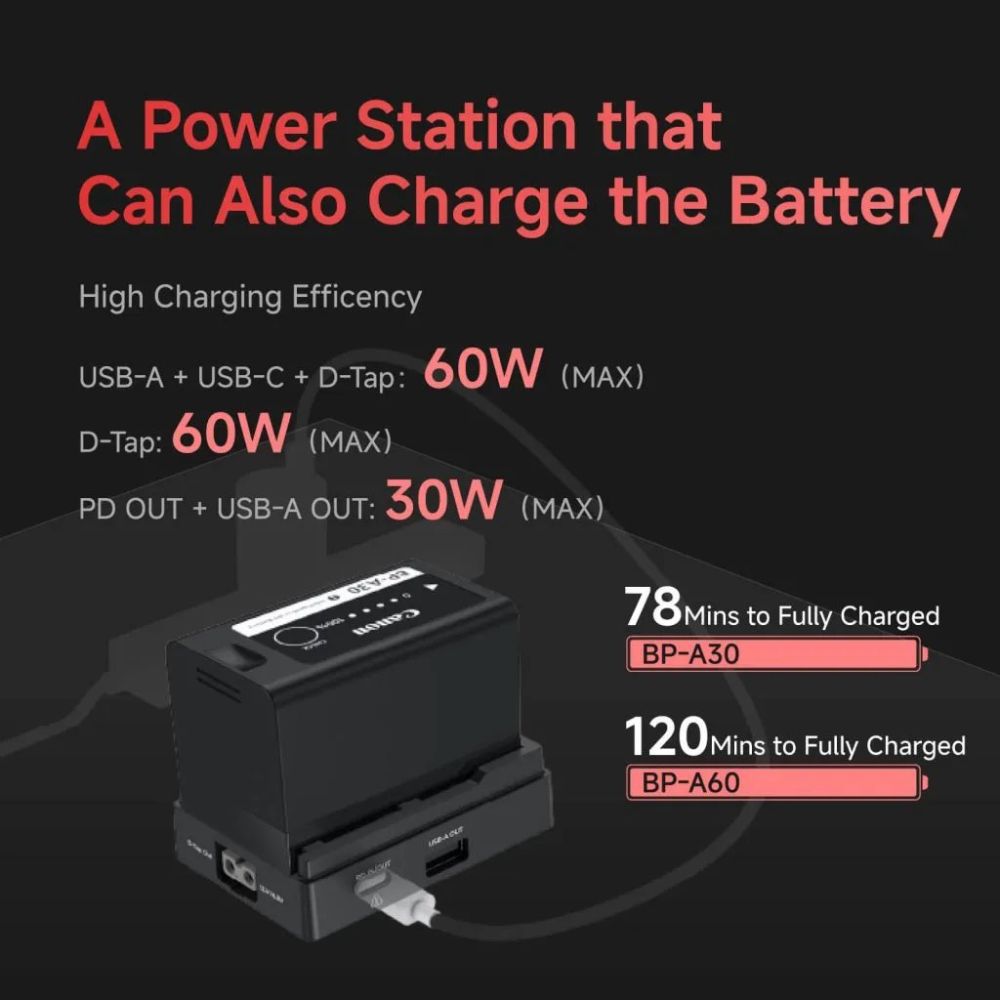

Accsoon - Toprig BP-A Battery plate

Accsoon - Toprig BP-A Battery plate

The Accsoon - Toprig BP-A Battery plate is designed for Canon BP-A Batteries. Most suitable for all Canon Cinema Video cameras, as well as other Cameras and mobile devices with USB-C connection.

Suitable for C400, C80 and other C Series BP-A Batteries; and provides power solutions for Canon R5C R5II R5 R62 and other Canon cameras. Also compatible with Sony, Panasonic, Fujifilm and other camera brands.

Note: When using the PD IN/OUT port to power OTG-enabled mobile devices, after replacing the battery, reconnect the power cable or hold the button for more than 10 seconds to restart the power supply.

When the PD and USB outputs are used at the same time, the total output power of both ports is 30W.

.

Features of the Accsoon - Toprig BP-A Battery plate

• PD output + USB-A output: 30W (MAX)
• USB-A + USB-C + D-Tap 60 W: (MAX)
• PD input: 20 W (MAX) / 5 V/3 A, 9 V/2.22 A, 12 V/1.67 A, 20 V/1 A
• PD output: 30 W (MAX) / 5 V/3 A, 9 V/3 A, 12 V/2.5 A, 20 V/1.5 A
• USB-C output: 5 V/3 A, 9 V/2.22 A, 12 V/1.67 A
• USB output: 5 V/3 A, 9 V/2.22 A, 12 V/1.67 A
• D-Tap output: 12 V-16.8 V 60 W (MAX)
• Material: ABS
• Dimensions: 76.7 x 54.2 x 22.6 mm
• Weight: 49.1 grams

Contents of the packaging

• 1x Accsoon - Toprig BP-A Battery plate
